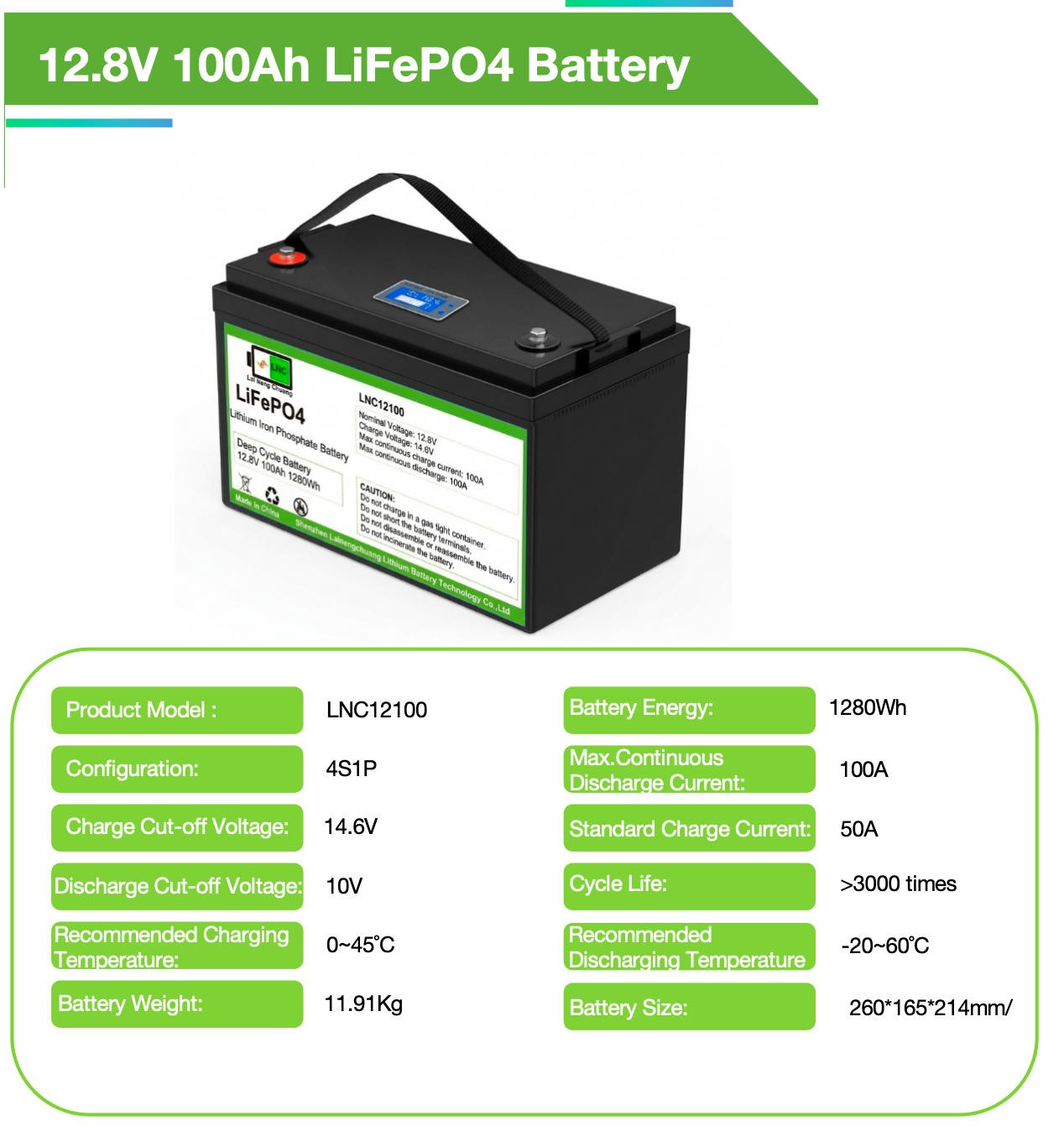

12V 100Ah LiFePO4 Batteries

Model: LNC-12100
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Configuration: 4S1P
Battery Type: LiFePO4 Battery
Cycle Life: 3000 cycles
Charging Voltage: 14.6V
Discharge Cut-off Voltage: 10V
Charging Current: 50A
Discharge Current: 100A


Item	Specifications	Remark
Model No.	LNC12100
Chemical Materials	LiFePO4
Nominal Voltage	12.8V	4S
Nominal Capacity	100Ah
Standard Charge current	20A	0.2C
Max Charge Current	50A
Standard Discharge current	20A	0.2C
Max Discharge Current	100A
Peak Current	200A
Charge Cut-off Voltage	14.6V	each cell 3.65V
Discharge Cut-off Voltage	10V	each cell 2.5V
Life Cycles	Over 2000 times
Operation Temperature	Charge: 0~45˚C; Discharge: -20~60˚C
Storage Temperature	-20~25˚C for 12months; -20~35˚C for 3months; -20~45˚C for 1months.
Protection	Over charge, over discharge, over voltage, over current, short circuit, high temperature protection, low temperature protection, balance...
Dimension	307172215(mm)
