Brand: LNC / OEM
Nominal Voltage: 12.8V
Nominal Capacity: 24Ah
Energy: 307.2Wh
Max Charge current: 10A
Max discharge current: 10A
Case Dimension: Custom
Warranty: 2 years
Product Specification
| Item | Specifications | Remark |
Model No. | LNC1224 | |
Chemical Materials | LiFePO4 | |
Nominal Voltage | 12.8V | 4S |
Nominal Capacity | 24Ah | |
Standard Charge current | 4.8A | 0.2C |
Max Charge Current | 10A | |
Standard Discharge current | 4.8A | 0.2C |
Max Discharge Current | 10A | |
Peak Current | No | |
Charge Cut-off Voltage | 14.6V | each cell 3.65V |
Discharge Cut-off Voltage | 10V | each cell 2.5V |
| Life Cycles | Over 2000 times | |
Operation Temperature | Charge: 0~45˚C; Discharge: -20~60˚C | |
Storage Temperature | -20~25˚C for 12months; -20~35˚C for 3months; -20~45˚C for 1months. | |
| Protection | Over charge, over discharge, over voltage, over current, short circuit, high temperature protection, low temperature protection, balance... | |
Dimension | Custom |
Product Features
Long Life: They last between 5 and 10 years.
High Cycles: You can charge and discharge them thousands of times.
Heat Resistant: They stay safe and stable in hot outdoor sun.
Full Brightness: The light stays bright until the battery is empty.
Fast Charging: They store energy quickly even on cloudy days.
Deep Discharge: You can use almost all the stored power every night.
Lightweight: They are much lighter than old lead-acid batteries.
Eco-Friendly: They contain no toxic lead or acid.
Applications
Factory Rooms

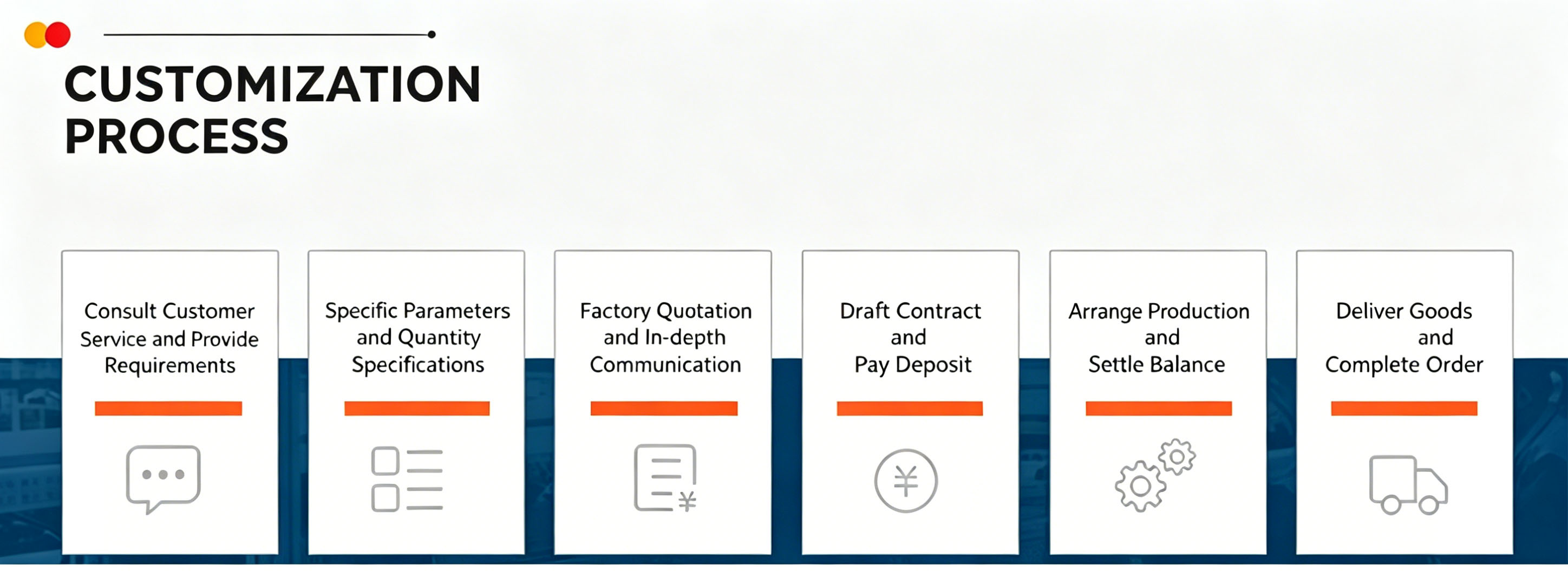

Process of Custom Battery
Contact: Teresa
Phone: 0086 15158984395
E-mail: info@lnclibattery.com
Whatsapp:008615158984395
Add: 2313A18, A build, Xinghe century, #3069, Caitian road, Gangsha, Futian street, Futian district, Shenzhen city, Guangdong province, China
