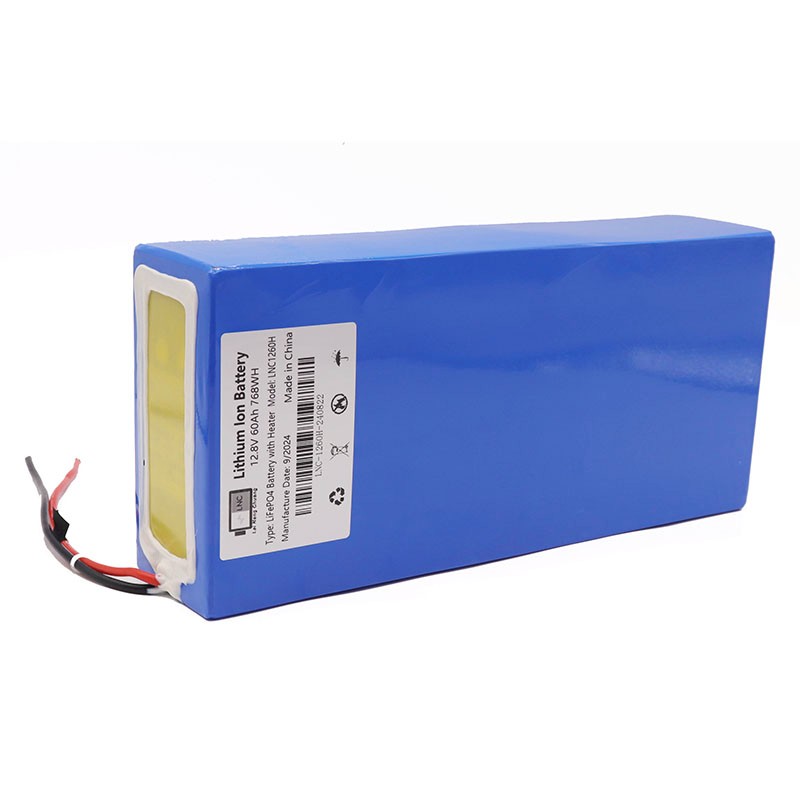

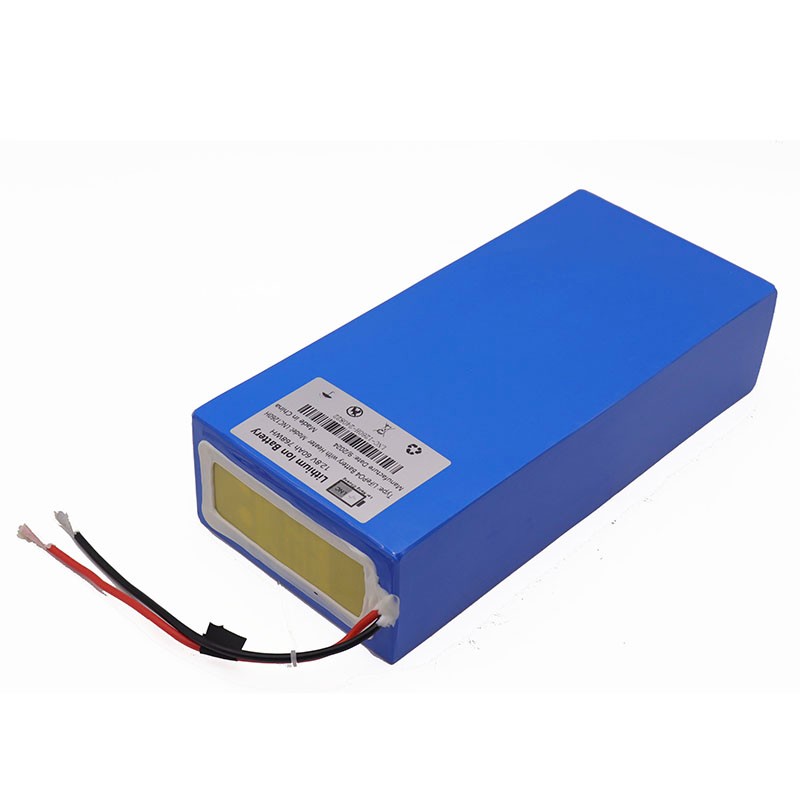

Brand: LNC / OEM
Nominal Voltage: 12.8V
Nominal Capacity: 60Ah
Energy: 768Wh
Max Charge current: 20A
Max discharge current: 20A
Max Dimension: 305*142*72(mm)/Custom
Warranty: 2 years
Product Specification
| Item | Specifications | Remark |
Model No. | LNC1260-H | |
Chemical Materials | LiFePO4 | |
Nominal Voltage | 12.8V | 4S |
Nominal Capacity | 60Ah | |
Standard Charge current | 12A | 0.2C |
Max Charge Current | 20A | |
Standard Discharge current | 12A | 0.2C |
Max Discharge Current | 20A | |
Peak Current | No | |
Charge Cut-off Voltage | 14.6V | each cell 3.65V |
Discharge Cut-off Voltage | 10V | each cell 2.5V |
| Life Cycles | Over 2000 times | |
Operation Temperature | Charge: 0~45˚C; Discharge: -20~60˚C | |
Storage Temperature | -20~25˚C for 12months; -20~35˚C for 3months; -20~45˚C for 1months. | |
| Protection | Over charge, over discharge, over voltage, over current, short circuit, high temperature protection, low temperature protection, balance... | |
Dimension | Custom |
Product Features
Long Life: They last between 5 and 10 years.
High Cycles: You can charge and discharge them thousands of times.
Heat Resistant: They stay safe and stable in hot outdoor sun.
Full Brightness: The light stays bright until the battery is empty.
Fast Charging: They store energy quickly even on cloudy days.
Deep Discharge: You can use almost all the stored power every night.
Lightweight: They are much lighter than old lead-acid batteries.
Eco-Friendly: They contain no toxic lead or acid.
Applications
Factory Rooms
